Agricultural
DC Electric Motors for the agricultural sector: comfort and safety in Agricultural Applications
M-59
Stall torque from 0,40Nm to 1,50Nm
The M-59 motors are electric motors equipped with noise filter.
The noise filter, which is normally made of an LC-circuit, allows the electric motors to be tested in compliance with the EMC directive.
Here are the electrical data with the performance of this range for the most commonly used voltages, 12V and 24V.
There is also mechanical data and a technical drawing of a standard product in this range. Otherwise, you can request a quotation with the desired changes from the contact form.
Food & Beverage
Efficient, high‑productivity coffee machines, yogurt machines, pastry equipment, honey extractors, and citrus juicers.
Home & Garden
Functionality and comfort in home environments with motorized recliners and adjustable beds.
Industrial Automation
Optimization of automated processes, industrial robotics, assembly systems.
Industry
Tailor-made solutions to improve efficiency, productivity, and automation in industrial processes.
Marine
DC electric motors for the Marine Sector: Comfort and safety at sea.
Medical
DC Electric Motors for the Medical Sector: Comfort and Safety in Medical Applications.
Office
Workspaces with height-adjustable desks for enhanced comfort and productivity.
Opening Systems
DC electric motors for opening systems: comfort and safety in gate and shutter automation applications.
Vending
Coffee machines, yogurt dispensers, pastry machines, honey extractors and citrus juicers – efficient and productive.
Electrical data
| Standard nominal voltage | 12 V | 24 V |
| No load speed N0 [Rpm] | 1000÷8000 | 2000÷8000 |
| No load current I0 [A] | 0,8÷2 | 0,4÷1 |
| Nominal speed Nn [Rpm] | 800÷7800 | 1800÷7800 |
| Nominal torque Mn [Nm] | 0,04 | 0,06 |
| Nominal current In [A] | 2÷6 | 1÷3 |
| Nominal power Pn [W] | 16÷45 | 16÷45 |
| Stall torque Ms [Nm] | 0,40÷1,30 | 0,40÷1,50 |
| Starting current Is [A] | 15÷80 | 8÷40 |
| Max power Pmax [W] | 50÷150 | 50÷200 |
| Max efficiency ηmax [%] | 50÷80 | 50÷80 |
Mechanical data
| Gears materials | |
| Gear ratio | - |
| Type of duty | S3 (Depending on application) |
| Weight [kg] | 0,70 |

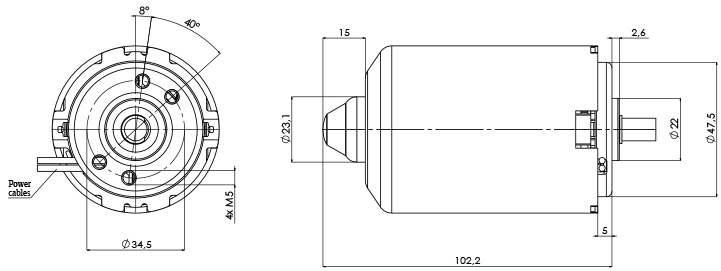

Technical drawing
Filter
Request a quote for this motor
Please note that we do not sell to private individuals and cannot supply replacement motors.
