GMR-42-25-Z4
Stall torque from 4,50Nm to 7,00Nm
The GMR-42-25-Z4 gearmotors are right-hand ø42 gearmotors equipped with noise filter. The rotor shaft has a worm with four threads.
The filter, generally made of an LC-circuit, allows the electric motors to be tested in compliance with the EMC norms.
Below are the electrical data and performance specifications for this range at the most commonly used voltages, 12V and 24V.
In addition, the mechanical data and a technical drawing of a standard product from this range are also provided. Alternatively, you can request a quotation for custom modifications using the dedicated form.
Food & Beverage
Efficient, high‑productivity coffee machines, yogurt machines, pastry equipment, honey extractors, and citrus juicers.
Home & Garden
Functionality and comfort in home environments with motorized recliners and adjustable beds.
Industrial Automation
Optimization of automated processes, industrial robotics, assembly systems.
Industry
Tailor-made solutions to improve efficiency, productivity, and automation in industrial processes.
Marine
DC electric motors for the Marine Sector: Comfort and safety at sea.
Medical
DC Electric Motors for the Medical Sector: Comfort and Safety in Medical Applications.
Office
Workspaces with height-adjustable desks for enhanced comfort and productivity.
Opening Systems
DC electric motors for opening systems: comfort and safety in gate and shutter automation applications.
Vending
Coffee machines, yogurt dispensers, pastry machines, honey extractors and citrus juicers – efficient and productive.
Electrical data
| Standard nominal voltage | 12 V | 24 V |
| No load speed N0 [Rpm] | 350÷550 | 350÷550 |
| No load current I0 [A] | 1,50÷2,30 | 0,75÷1,15 |
| Nominal speed Nn [Rpm] | 337÷537 | 321÷522 |
| Nominal torque Mn [Nm] | 0,16 | 0,37 |
| Nominal current In [A] | 2,10÷3,20 | 1,40÷2,20 |
| Nominal power Pn [W] | 5,70÷9 | 12,40÷20,20 |
| Stall torque Ms [Nm] | 4,50÷7 | 4,50÷7 |
| Starting current Is [A] | 17,80÷42 | 16,90÷21 |
| Max power Pmax [W] | 41,50÷102,5 | 41,50÷102,5 |
| Max efficiency ηmax [%] | 46,40÷52,40 | 46,40÷52,40 |
Mechanical data
| Gears materials | Plastic |
| Gear ratio | 4:56 |
| Type of duty | S3 (Depending on application) |
| Weight [kg] | 0,65 |

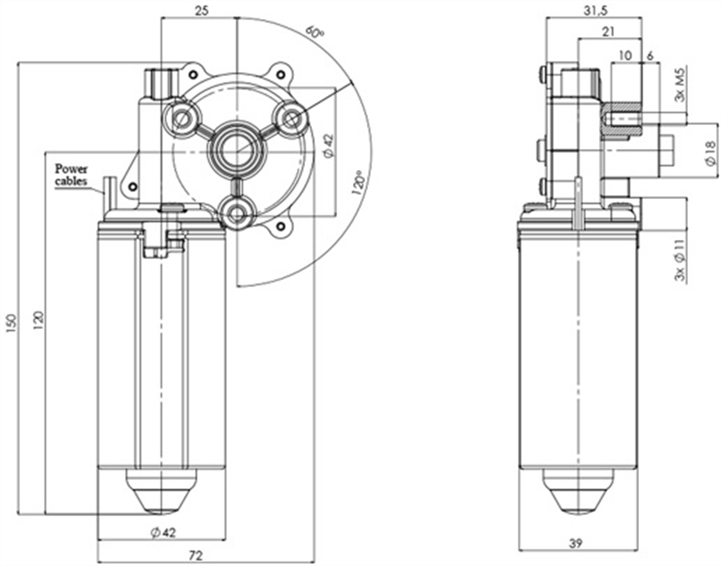

Technical drawing

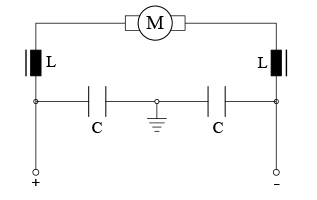

Filter
