GML-77-35-Z1-X
Stall torque from 31,00Nm to 83,00Nm
The GML-77-35-Z1-X gear motors are not equipped with filter and the brushes can be replaced. The rotor shaft has a worm with one thread.
The replaceable brushes allow a longer life to the motor and they can be replaced by removing the plastic part screwed to the brush-holder.
In the technical data-sheet it is possible to select the output gear shaft and to request a particular set of cables by inserting it in the enquiry form.
In the table “Electric Data” one can see the application voltage range and the performances for the most commonly used voltages, 12V and 24V.
The interactive curve allows to select the required performances by selecting the power voltage and the no-load speed.
Food & Beverage
Efficient, high‑productivity coffee machines, yogurt machines, pastry equipment, honey extractors, and citrus juicers.
Home & Garden
Functionality and comfort in home environments with motorized recliners and adjustable beds.
Industrial Automation
Optimization of automated processes, industrial robotics, assembly systems.
Industry
Tailor-made solutions to improve efficiency, productivity, and automation in industrial processes.
Marine
DC electric motors for the Marine Sector: Comfort and safety at sea.
Medical
DC Electric Motors for the Medical Sector: Comfort and Safety in Medical Applications.
Office
Workspaces with height-adjustable desks for enhanced comfort and productivity.
Opening Systems
DC electric motors for opening systems: comfort and safety in gate and shutter automation applications.
Vending
Coffee machines, yogurt dispensers, pastry machines, honey extractors and citrus juicers – efficient and productive.
Electrical data
| Standard nominal voltage | 12 V | 24 V |
| No load speed N0 [Rpm] | 30÷80 | 30÷80 |
| No load current I0 [A] | 0,70÷1,90 | 0,35÷0,95 |
| Nominal speed Nn [Rpm] | 25,90÷75,80 | 25,90÷75,80 |
| Nominal torque Mn [Nm] | 4,50 | 4,50 |
| Nominal current In [A] | 2,60÷6,90 | 1,30÷3,45 |
| Nominal power Pn [W] | 25,60÷35,70÷ | 25,60÷35,70 |
| Stall torque Ms [Nm] | 31÷83 | 31÷83 |
| Starting current Is [A] | 13,70÷95 | 6,85÷42,50 |
| Max power Pmax [W] | 25,60÷182 | 25,60÷182 |
| Max efficiency ηmax [%] | 39,70÷47,30 | 39,70÷47,30 |
Mechanical data
| Gears materials | Plastic |
| Gear ratio | 1:49 |
| Type of duty | S3 (Depending on application) |
| Weight [kg] | 2,00 |

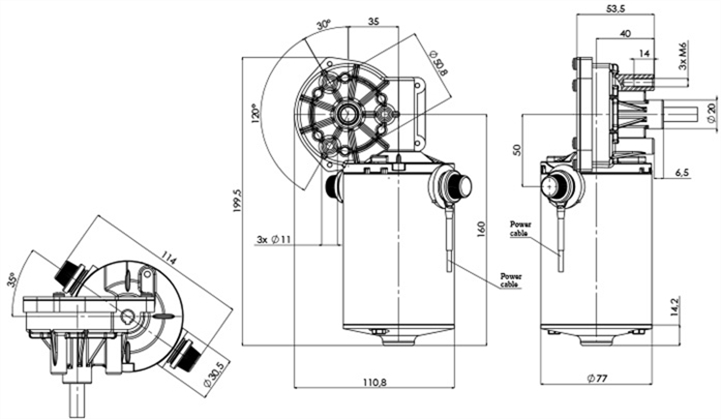

Technical drawing
