DC Electric Motors for the agricultural sector: comfort and safety in Agricultural Applications
GML-42-P-25-Z3
Stall torque from 5,40Nm to 13,50Nm
The GML-42-P-25-Z3gear motors are equipped with filter and have higher performances than the GML42-25-Z3 gear motors thanks to longer rotor and magnets. The rotor shaft has a worm with three threads. Longer rotor and magnets allow to increase the maximum torque, thus improving the efficiency under load.
The filter, generally made of an LC-circuit, allows the electric motors to be tested in compliance with the EMC norms.
Below are the electrical data and performance specifications for this range at the most commonly used voltages, 12V and 24V.
In addition, the mechanical data and a technical drawing of a standard product from this range are also provided. Alternatively, you can request a quotation for custom modifications using the dedicated form.
Food & Beverage
Efficient, high‑productivity coffee machines, yogurt machines, pastry equipment, honey extractors, and citrus juicers.
Home & Garden
Functionality and comfort in home environments with motorized recliners and adjustable beds.
Industrial Automation
Optimization of automated processes, industrial robotics, assembly systems.
Industry
Tailor-made solutions to improve efficiency, productivity, and automation in industrial processes.
Marine
DC electric motors for the Marine Sector: Comfort and safety at sea.
Medical
DC Electric Motors for the Medical Sector: Comfort and Safety in Medical Applications.
Office
Workspaces with height-adjustable desks for enhanced comfort and productivity.
Opening Systems
DC electric motors for opening systems: comfort and safety in gate and shutter automation applications.
Vending
Coffee machines, yogurt dispensers, pastry machines, honey extractors and citrus juicers – efficient and productive.
Electrical data
| Standard nominal voltage | 12 V | 24 V |
| No load speed N0 [Rpm] | 140÷350 | 140÷350 |
| No load current I0 [A] | 0,70÷1,85 | 0,35÷0,92 |
| Nominal speed Nn [Rpm] | 140÷340 | 120÷330 |
| Nominal torque Mn [Nm] | 0,40 | 0,75 |
| Nominal current In [A] | 1,30÷3,30 | 0,90÷2,30 |
| Nominal power Pn [W] | 5,40÷14 | 9,50÷25,60 |
| Stall torque Ms [Nm] | 5,40÷13,50 | 5,40÷13,50 |
| Starting current Is [A] | 8,80÷52 | 4,40÷26 |
| Max power Pmax [W] | 20÷124 | 20÷124 |
| Max efficiency ηmax [%] | 45÷56 | 45÷56 |
Mechanical data
| Gears materials | Plastic |
| Gear ratio | 3:59 |
| Type of duty | S3 (Depending on application) |
| Weight [kg] | 0,72 |

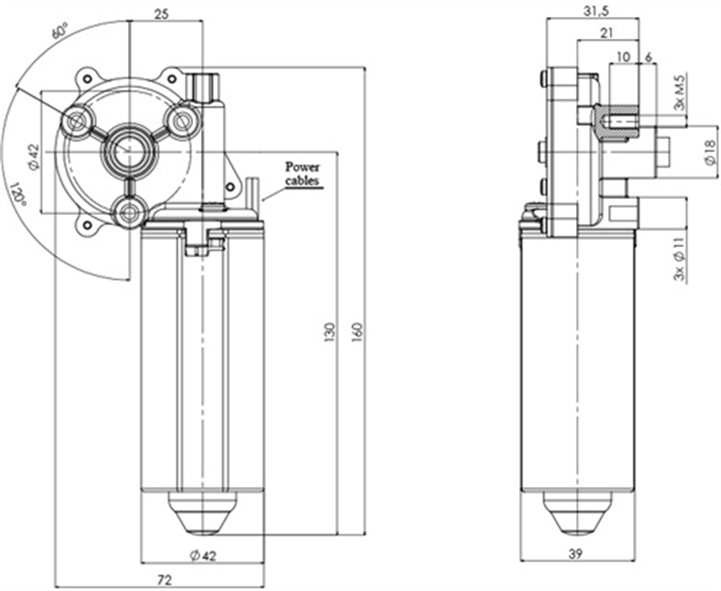

Technical drawing

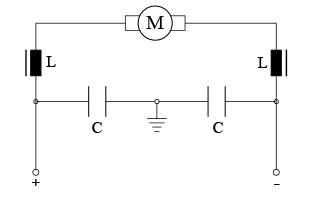

Filter
